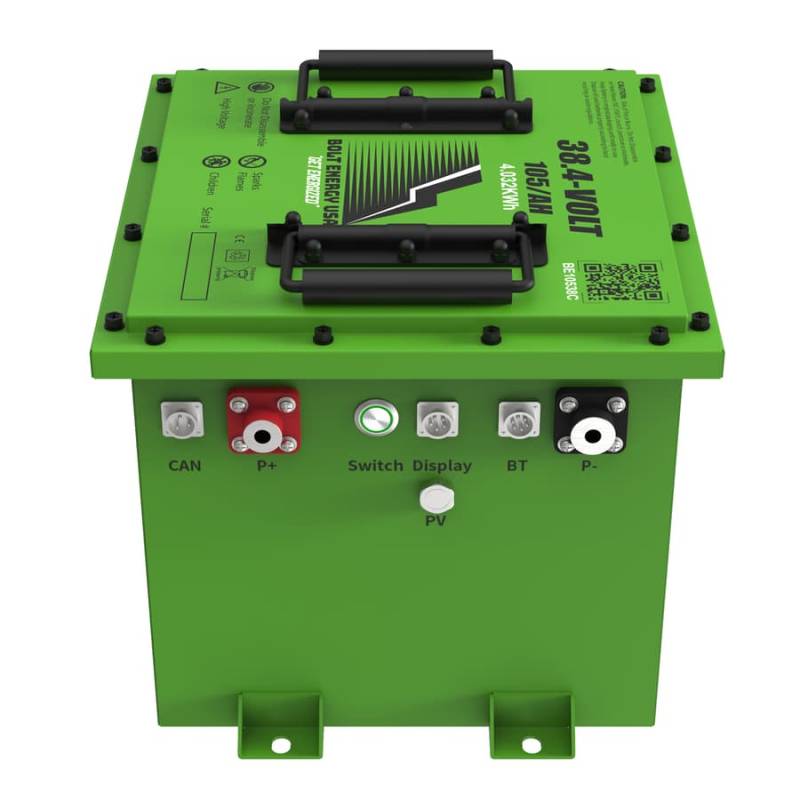

Bolt Energy 38V 105AH Heated Professional Accessory Battery Kit

Product Description

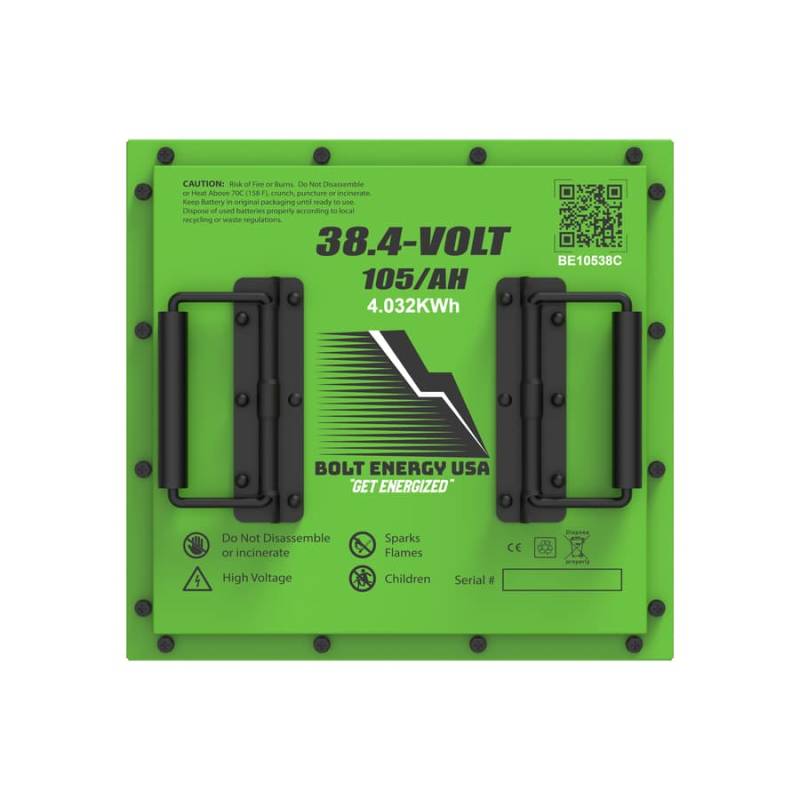

38.4V 105Ah Battery with Professional Kit

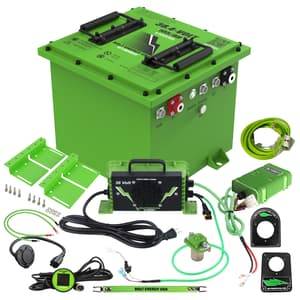

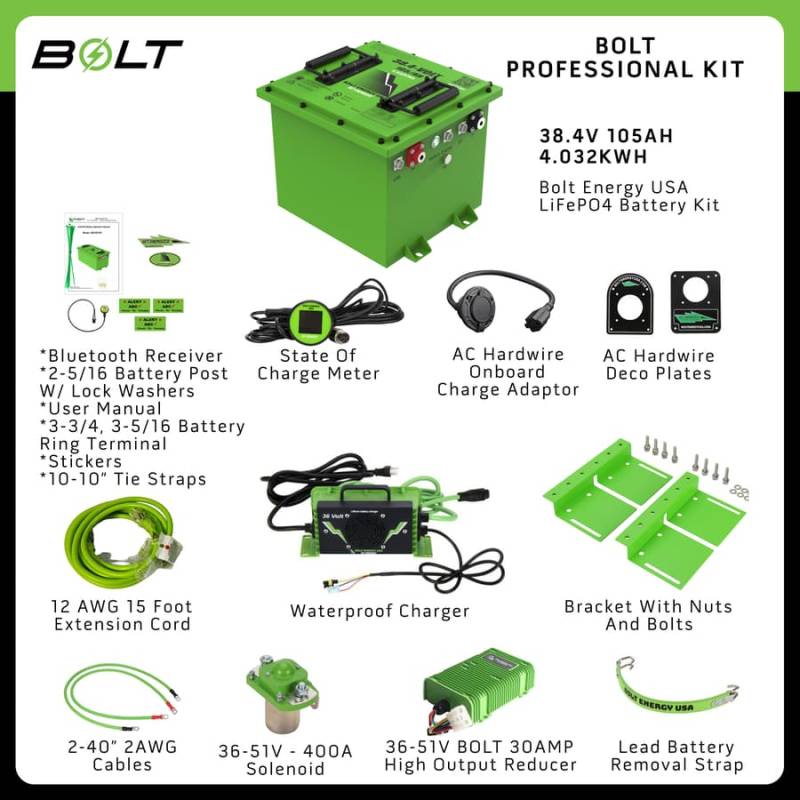

Professional Kit Includes:

38.4V 105Ah Battery
Bluetooth receiver
Smart SOC (State of charge meter)
Owner’s manual
Six 3/8 battery ring terminal connectors
Ten 10" tie straps
Bolt Energy USA stickers
Waterproof high-speed charger
Mounting brackets, Nuts, and bolts
AC Hardwire PORT
AC hardwire DECO Cover plates
30-amp reducer
Two 40" 2AWG premium installation cables
400A solenoid
Lead battery removal strap
15ft 12 AWG Green lighted extension cord

Heated Battery Specifications:

Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
The battery can charge in unheated places such as garages, barns and even outdoors
The heating system only activates while the charger is plugged in
Heated batteries can warm themselves overnight and be ready to use the next day
A heated battery temperature charge and discharge specifications still operate the same as standard batteries

Electrical Specifications:

Nominal Voltage: 38.4V
Working Voltage: 32.4 – 43.8V
Recommended Voltage: 36.0V – 42.6V
Nominal Capacity: 105Ah
Energy: 4.032KWh
Capacity at 25A: 252 min
Efficiency: 0.99
Self-Discharge: <3% per Month

Discharge Specifications:

Maximum Continuous Discharge Current: 250A
Peak Discharge Current: 520A ± 15.6A (30S)
BMS Discharge Current Cut-Off:
260 A ± A7.8A (50S)
520A ± 15.6A (30S)
BMS Discharge Voltage Cut-Off: 30V
Recommended Low Voltage Disconnect: 36.0V
BMS Reconnect Voltage: 31.2V
Discharge Temperature: -4 to 149°F (-20 to 65°C)

Charge Specifications:

Recommended Charge Current: 5 – 52A
Maximum Input Current: 350A
Charge Current Cut-Off: 375A
BMS Charge Voltage Cut-Off: 43.8V
Reconnect Voltage: <43.8V
Charging Temp. Range: 34°F to 140°F (0-60°C)

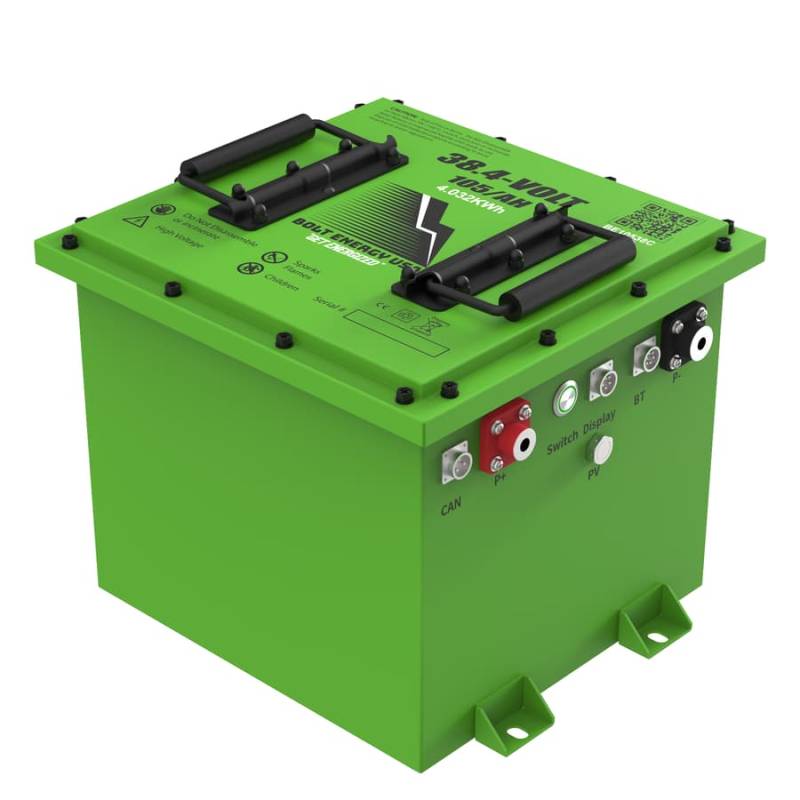

Mechanical Specifications:

Dimensions (L x W x H): 11.14" x 10.58" x 10.67"
Weight: 77.27lbs (35.05kg)
Terminal Type: M8*1.5*25mm
Cell Configuration: 1P16S
Case Material: Powder Coated Steel
Enclosure Protection: Designed with IP66 Standard
Cell Type – Chemistry: Prismatic- LiFePO4

Communication:

Bluetooth: Bluetooth receiver
CAN: CAN port for testing battery

Specifications

Make
CLUB CAR

Voltage
36V

Unit
EA

Make Model Year Power
YAMAHA G9 ELECTRIC Current Current
YAMAHA G8 ELECTRIC Current Current
YAMAHA G5 ELECTRIC Current Current
YAMAHA G3 ELECTRIC Current Current
YAMAHA G2 ELECTRIC Current Current
YAMAHA G16 ELECTRIC Current Current
YAMAHA G14 ELECTRIC Current Current
YAMAHA G1 ELECTRIC Current Current
UNIVERSAL UNIVERSAL ELECTRIC Current Current
EZGO TXT ELECTRIC Current Current
CLUB CAR DS ELECTRIC Current Current

Freight Type
Non-Standard Plus

Brand
Bolt Energy USA
