Bolt Energy 51V 105AH Professional Thin Accessory Battery Kit

Bolt Energy 51V 105AH Professional Thin Accessory Battery Kit
Product Description

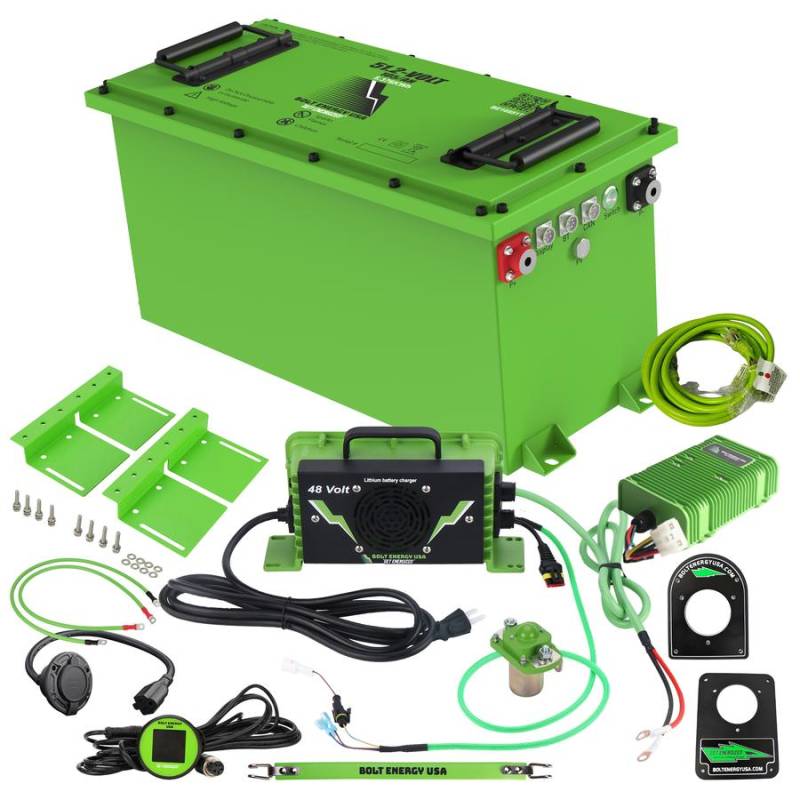

51.2V 105Ah “Thin” Battery with Professional Kit

Professional Kit Includes:
51.2V 105Ah “Thin” Battery
Bluetooth receiver
Smart SOC (State of charge meter)
Owner’s manual
Six 3/8 battery ring terminal connectors
Ten 10" tie straps
Bolt Energy USA stickers
Waterproof high-speed charger
Mounting brackets, Nuts, and bolts
AC Hardwire Port
AC hardwire DECO cover plates
30-amp reducer
Two 40? 2AWG premium installation cables
400A solenoid
Lead battery removal strap
15ft 12 AWG Green lighted extension cord
Electrical Specifications:
Nominal Voltage: 51.2V
Working Voltage: 43.2 – 58.4V
Recommended Voltage: 48.0V – 57.0V
Nominal Capacity: 105Ah
Energy: 5,376Wh
Capacity at 25A: 252 min
Efficiency: 0.99
Self-Discharge: <3% per Month
Discharge Specifications:
Maximum Continuous Discharge Current: 250A
Peak Discharge Current: 520A ± 15.6A (30S)
BMS Discharge Current Cut-Off:
260 A ± A7.8A (50S)
520A ± 15.6A (30S)
BMS Discharge Voltage Cut-Off: 40V
Recommended Low Voltage Disconnect: 48.0V
BMS Reconnect Voltage: 41.6V
Discharge Temperature: -4 to 149°F (-20 to 65°C)
Charge Specifications:
Recommended Charge Current: 5 – 52A
Maximum Input Current: 350A
Charge Current Cut-Off: 375A
BMS Charge Voltage Cut-Off: 58.5V
Reconnect Voltage: <58.5V
Charging Temp. Range: 34°F to 140°F (0-60°C)
Mechanical Specifications:
Dimensions (L x W x H): 20? x 8.43? x 10.65?
Weight: 105lbs (47.63kg)
Terminal Type: M8*1.5*25mm
Cell Configuration: 1P16S
Case Material: Powder Coated Steel
Enclosure Protection: Designed with IP66 Standard
Cell Type – Chemistry: Prismatic- LiFePO4
Communication:
Bluetooth: Bluetooth receiver
CAN: CAN port for testing battery
Specifications
Make
EZGO
Voltage
48V
Unit
EA
Make Model Year Power
EZGO TERRAIN ELECTRIC Current Current
Freight Type
Lithium
Brand
Bolt Energy USA
